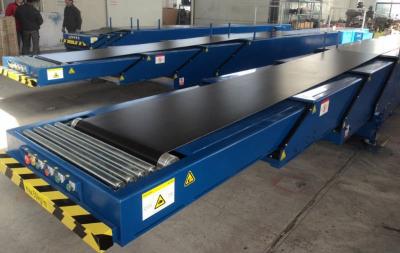

Model: SSJ-S

This conveyor fulfils all requirements for easy and efficient loading and unloading.It is used for bridging variable distances from the unloading or loading point. The unloading process starts close to the door and the last package at the far end of the loading area should be put on the conveyor without having to lift and carry the goods over long distances. This ergonomic way of working is achieved by a conveyor that can be extended like a telescope. If you have to clear routes, the telescopic conveyor can be easily retracted and/or moved aside. It intends to:
* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

All kinds of loose goods or unit loads (cartons, packages, virtually any conveyorable product) in or out of trucks, trailers, vans, containers, ships, trains or aeroplanes, receiving and dispatching at warehouse/distribution centres,in manufacturing and transportation companies

Features:

Fit to various goods transfering, efficient & easy material handling, easy to operate, Verious optional fuctions available

Relative Products:

Telescopic Belt Conveyor

More conveyors available, please ASK US if you're looking for something else.

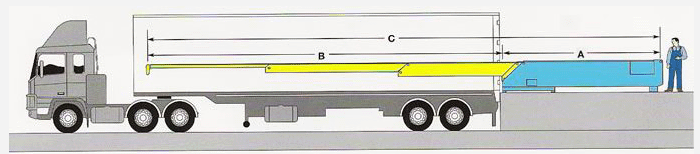

Main Technical Parameters:

Model	Section No.	RetractedLength (mm)	ExtendableLength (mm)	TotalLength (mm)	EffectiveWidth (mm)	Height (mm)	BeltSpeed (m/min)	Capacity (kg/m)
SSJ-S2	2	6000	4000	10000	600 / 800	700+	20-36	50
SSJ-S3	3	4500	6000	10500	600 / 800	750+	20-36	50
SSJ-S3	3	5400	7300	12700	600 / 800	750+	20-36	50
SSJ-S4	4	6000	12000	18000	600 / 800	800+	20-36	50
SSJ-S4	4	7000	14000	21000	600 / 800	800+	20-36	50

P.S.: *More customized specifications of SSJ are available.
*Optional functions on TBC-S: 1. HYDRAULIC INCLINATION 2. HEAVY DUTY CASTORS 3. STANDING PLATFORM 4. END LIGHTING 5. COUNTING 6. SCANNING

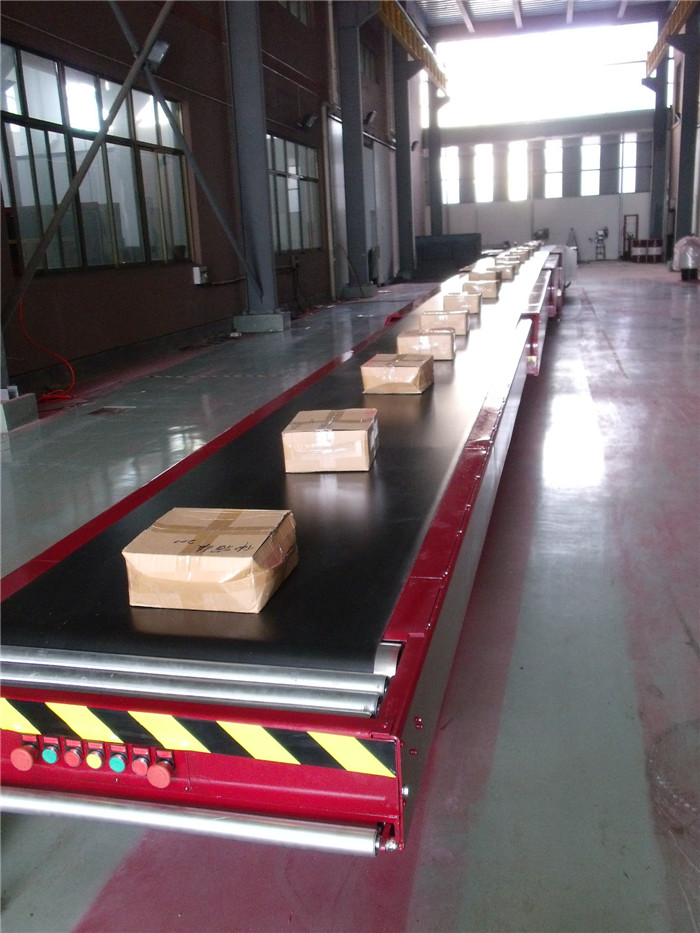

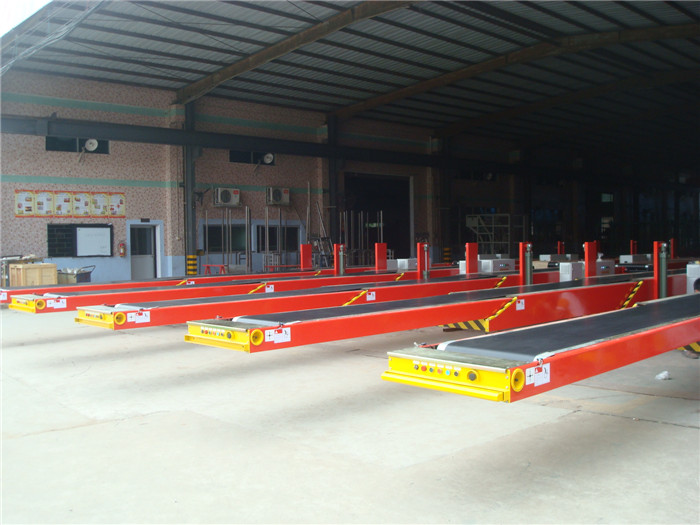

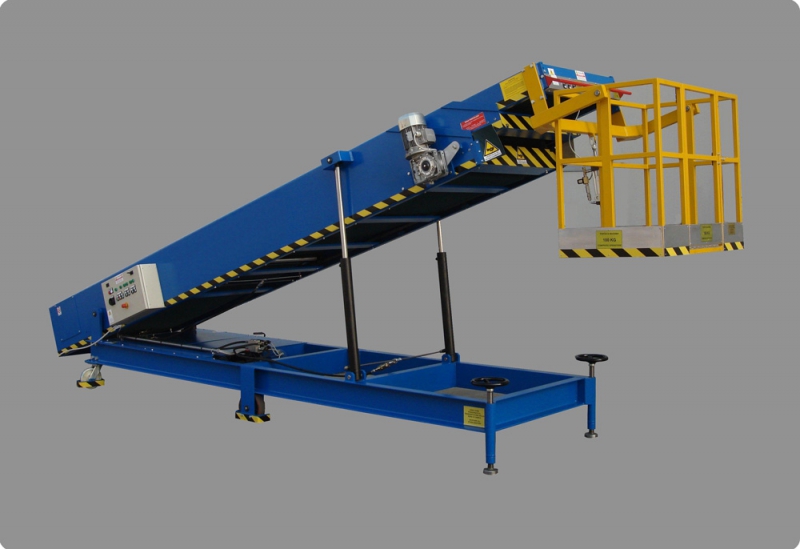

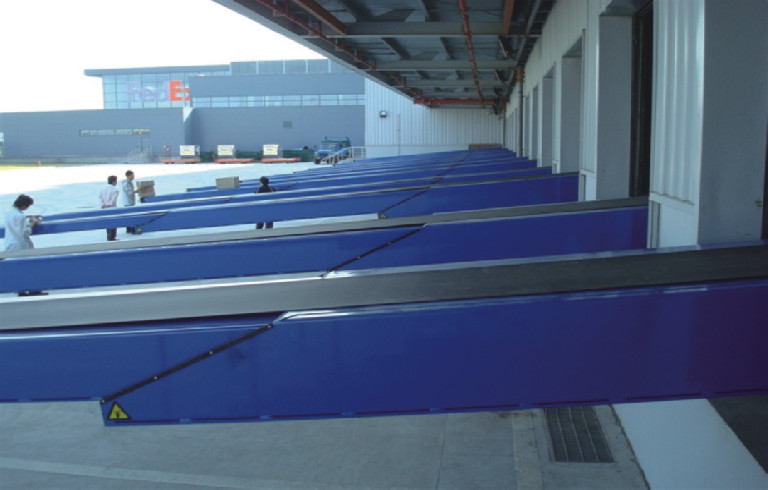

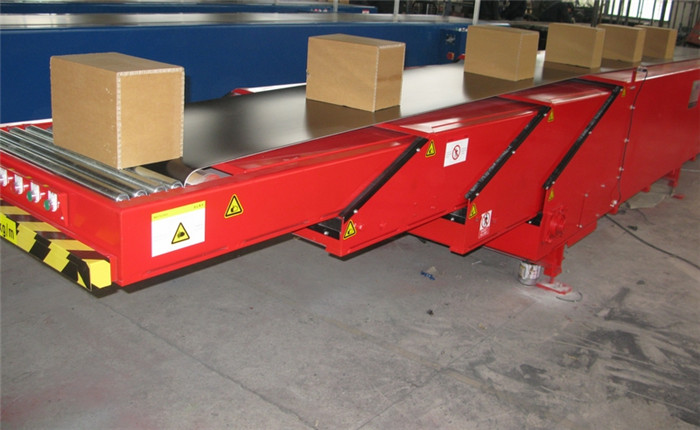

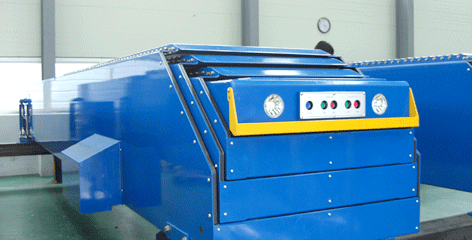

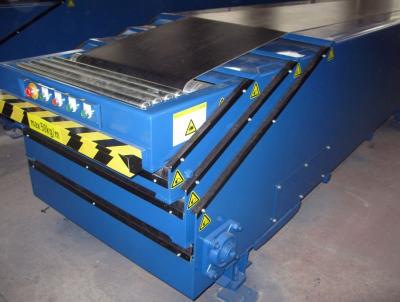

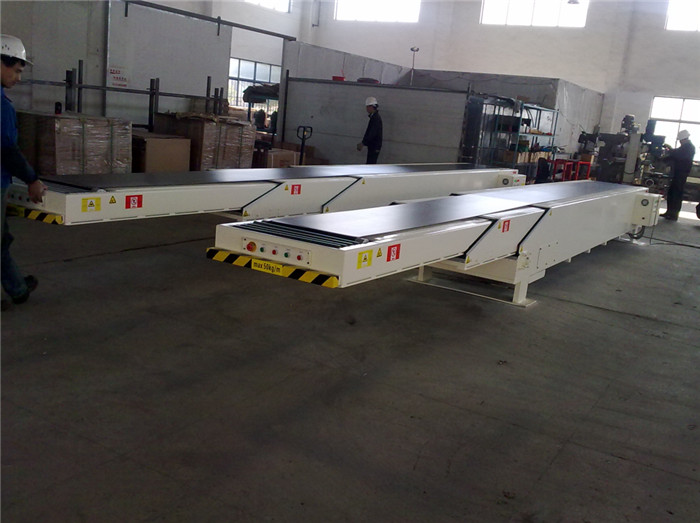

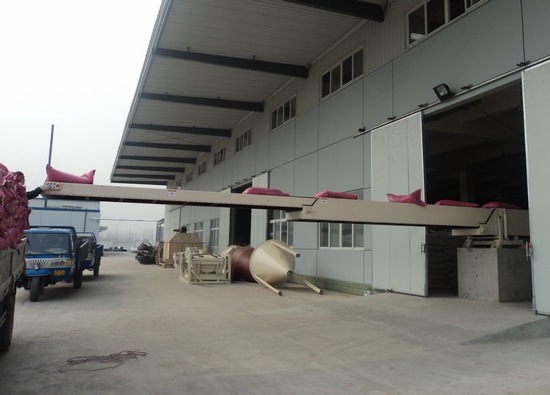

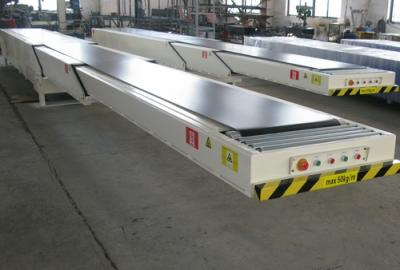

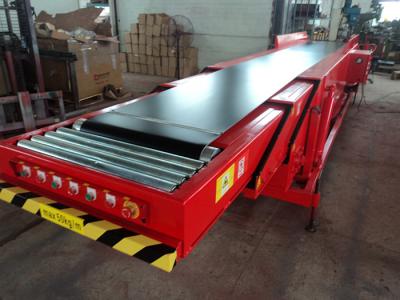

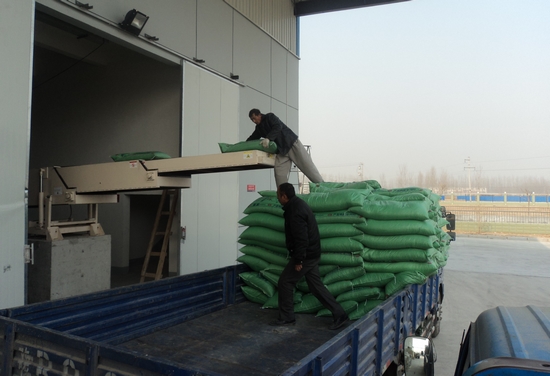

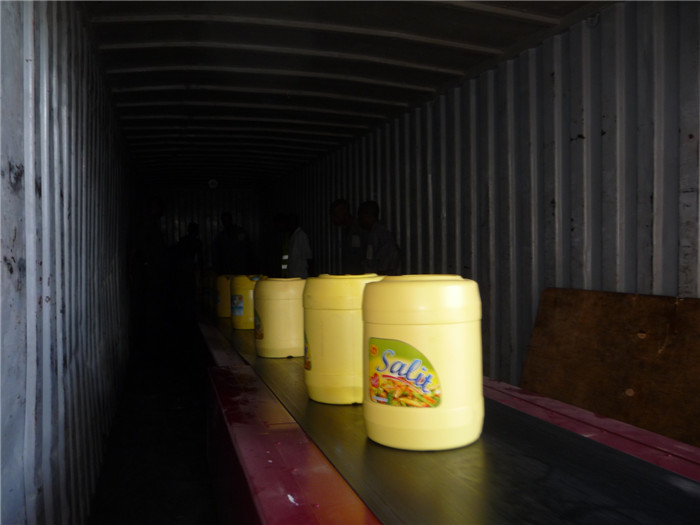

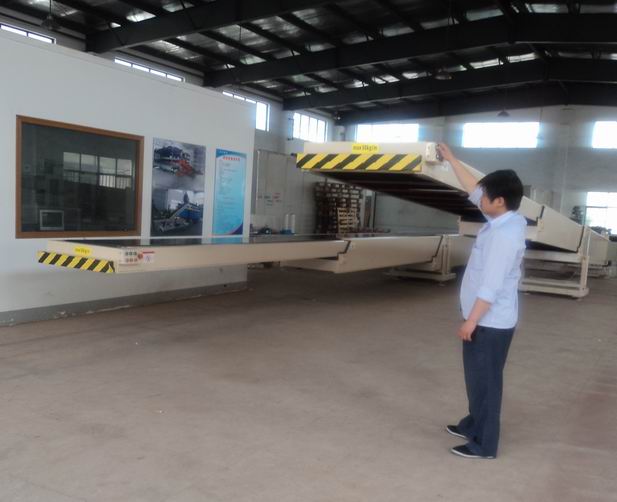

More Pictures for Reference
