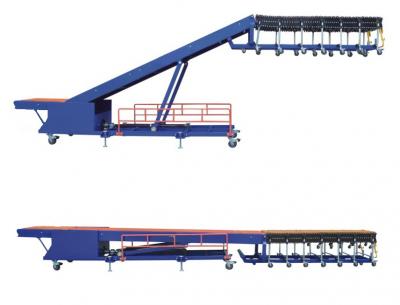

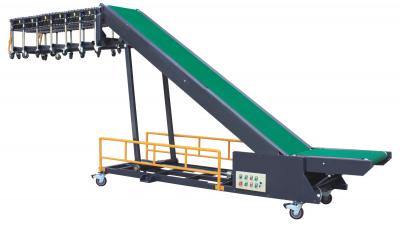

Model: ML-F/ML-D

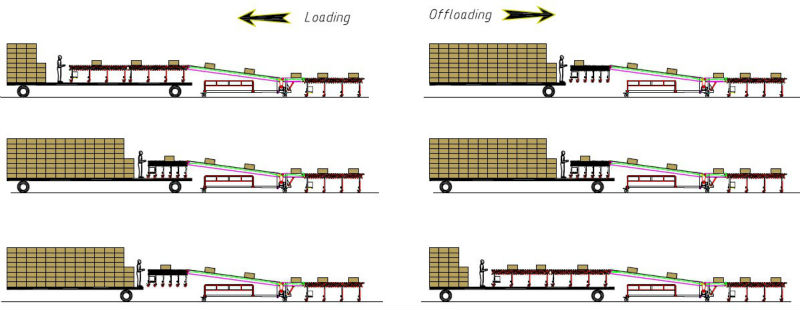

It is a welcome loading / unloading conveyor, especially for the situations without shipping docks. It is designed to load or unload item to or from containers, trailers, trucks, or vans AUTOMATICALLY. It intends to:
* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

Loading or unloading cartons, boxes, cases, and other flat-bottomed items

Features:

Fit to different heights, with top flexible extension, easy to operate & maintain, durable

Relative Products:

Mobile Loading Conveyor w/o Top Extension

Mobile Loading Conveyor with Top Platform

More conveyors available, please ASK US if you're looking for something else.

Main Technical Parameters:

Composition Items	Mobile Loading Conveyor

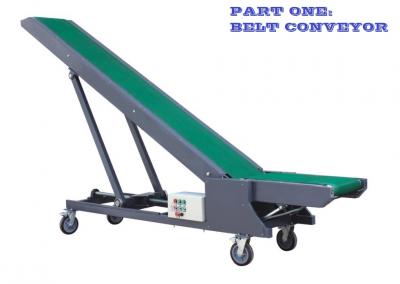

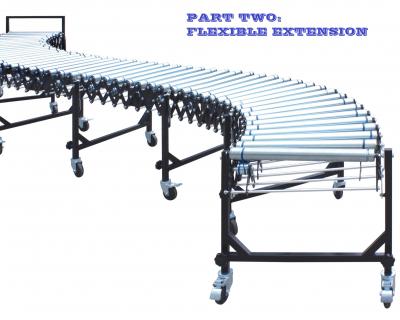

	Part One: Belt Conveyor	Part Two: Flexible Extension (Motorized / Gravity)
Length (mm)	4660	1700-4200 / 2200-6900
Effective Width (mm)	600	600
Height (mm)	700-2500
Capacity (kg/meter)	50
Speed (m/min)	10-20
Motor Power (kw)	1.5kw (+0.24kw) when loading/unloading, 2.2kw when lifting
	1.5kw for belt, 2.2kw for lifting	0.06kw*4=0.24kw / 0 kw
Power Supply	380V,3PH, 50HZ (standard), others available
Dead Weight (kg)	880 / 850
Main Material	Carbon steel, PVC belt

More Pictures for Reference
