Model: DS

It is a FLEXIBLE & POWERED conveyor, which is extendable, retractable and bendable. With sufficient power (one meter one motor), it makes ture automatic material transfering. It intends to:
* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

*Loading or unloading flat-bottomed items (cartons, boxes or cases) in shipping docks

*General material transfering in warehouse/storehouse, workshops, factories, etc.

Features:

Flexible & portable, easy to store, easy to operate, workable in zigzag passages, unlimited in length

Relative Products:

Flexible Gravity Roller Conveyor
Flexible Gravity Skate-Wheel Conveyor

More conveyors available, please ASK US if you're looking for something else.

Main Technical Parameters:

Model	OpenLength (mm)	ClosedLength (mm)	Width (mm)	Height (mm)	Capacity (kg/meter)	Speed (m/min)	MotorPower (kw/meter)	RollerDia.(mm)	RollerNo.(pcs/meter)
DS-D4	1700	4200	600	700-1000	40	10-20	0.06	50	9
DS-D5	2100	5200	600	700-1000	40	10-20	0.06	50	9
DS-D6	2500	6200	600	700-1000	40	10-20	0.06	50	9
DS-D10	4100	10200	600	700-1000	40	10-20	0.06	50	9
DS-D20	8100	20200	600	700-1000	40	10-20	0.06	50	9

P.S.: *D4, D5, D6…means one set of conveyor is composed of 4, 5, or 6 sections of DS-D.
*The conveyor is optional in length,counted by "section", which is 400-1000mm in length.

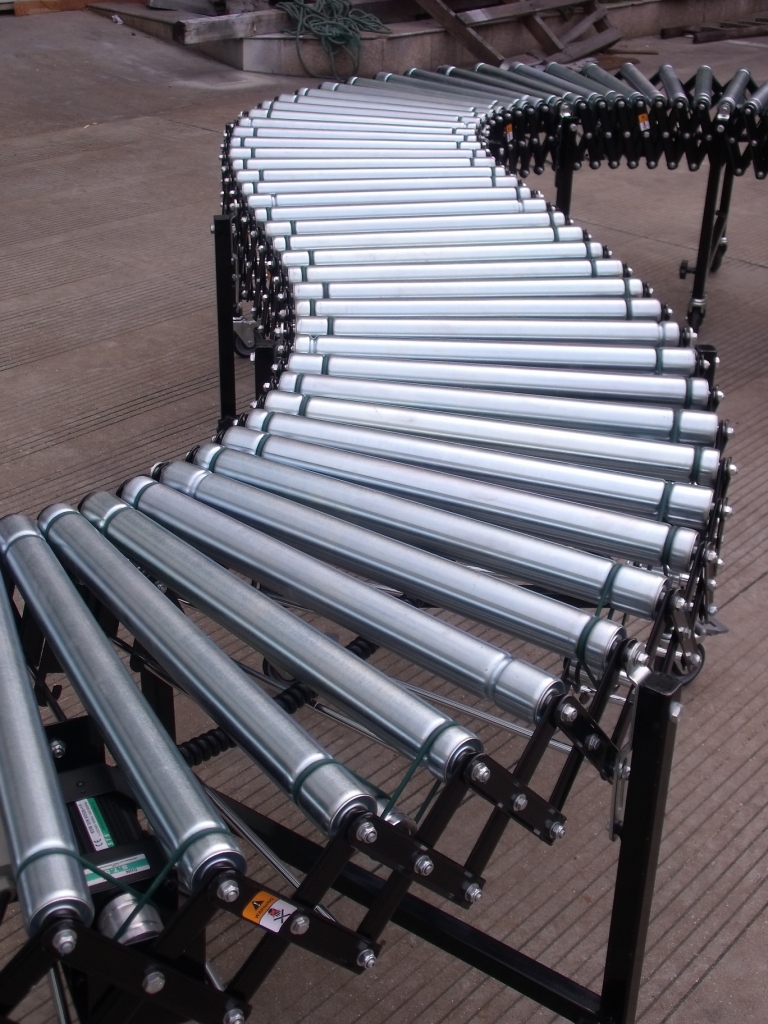

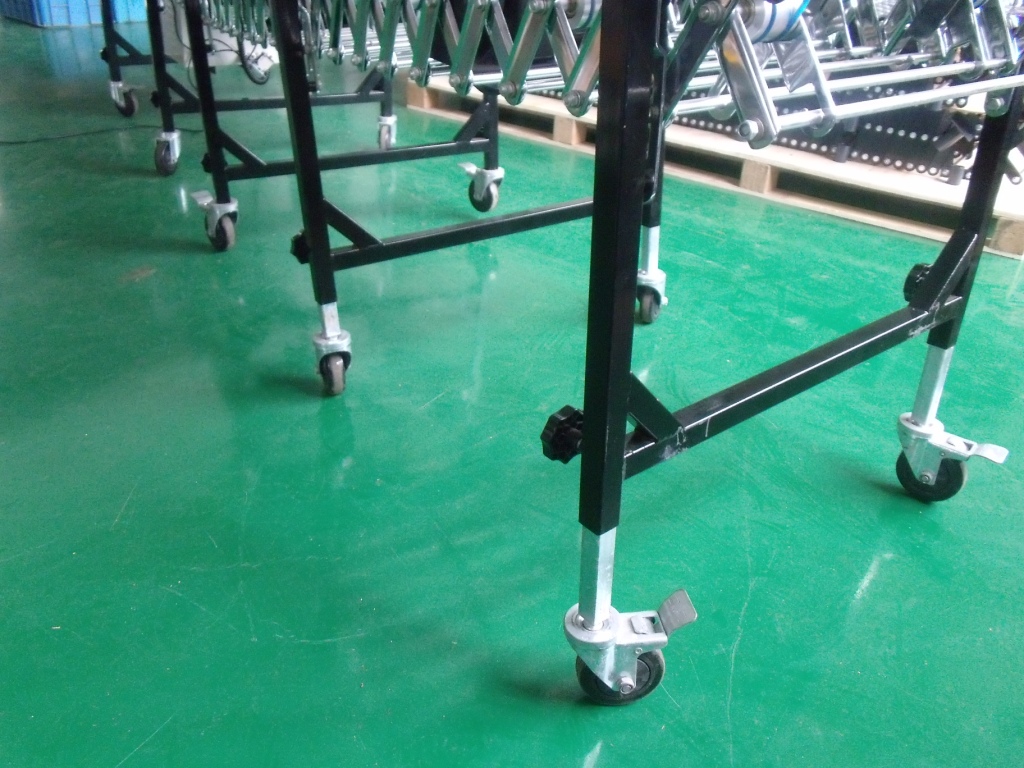

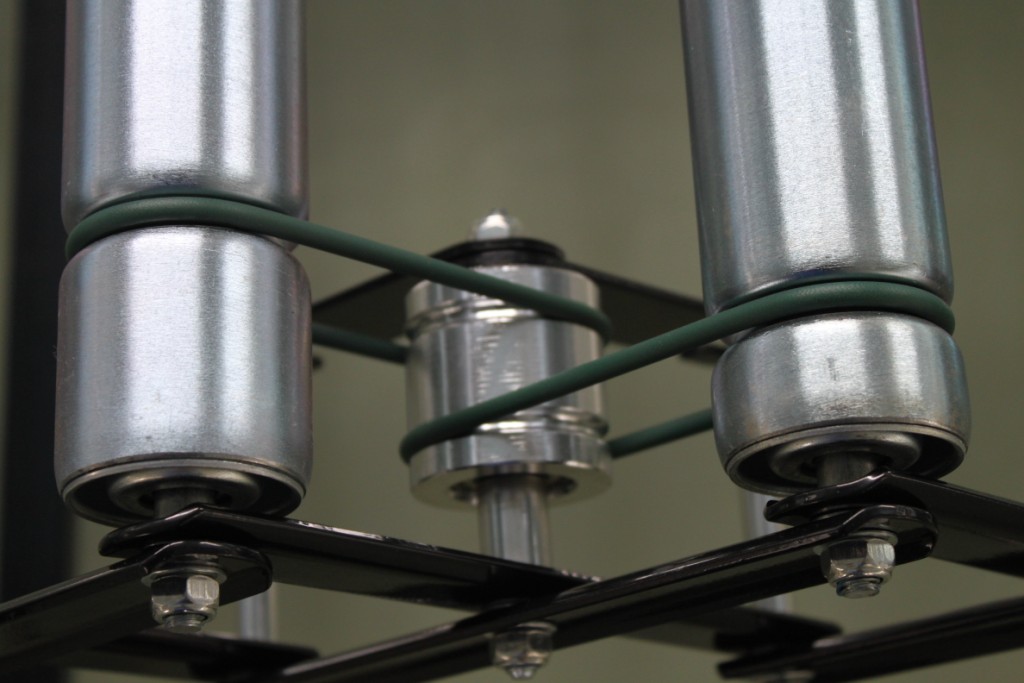

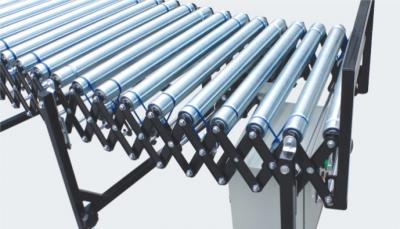

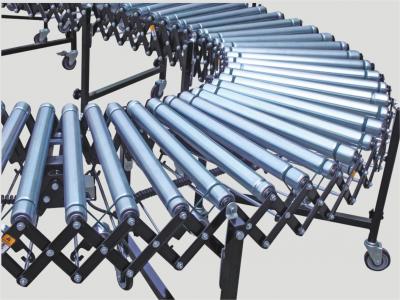

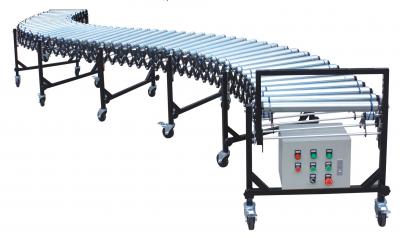

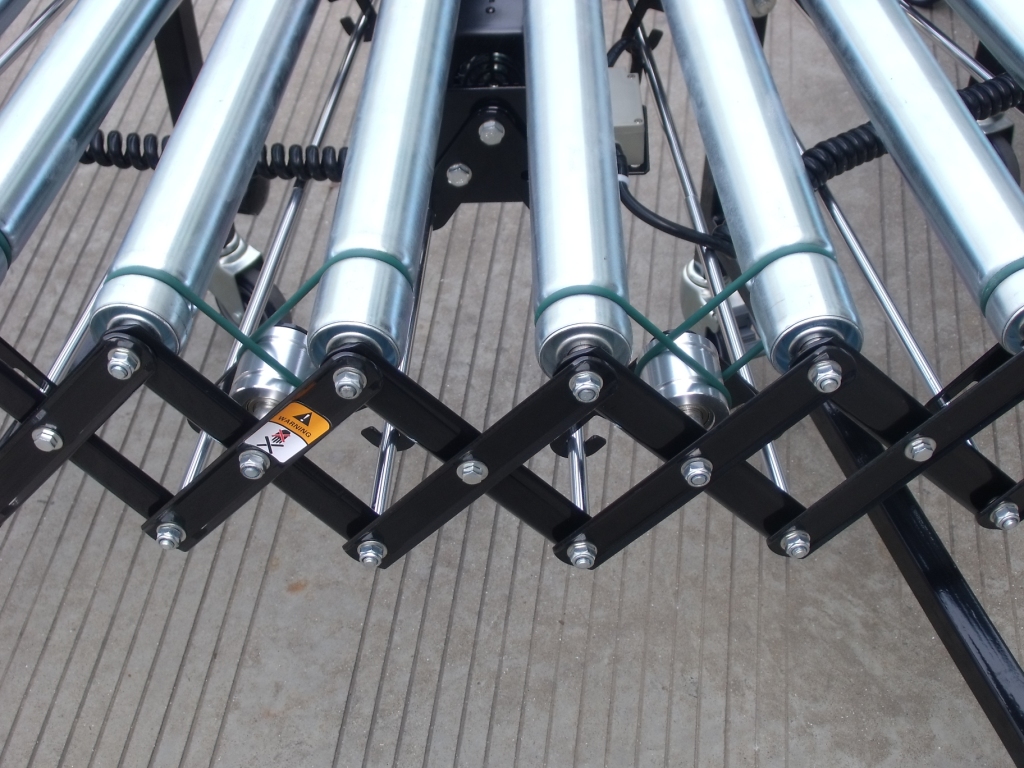

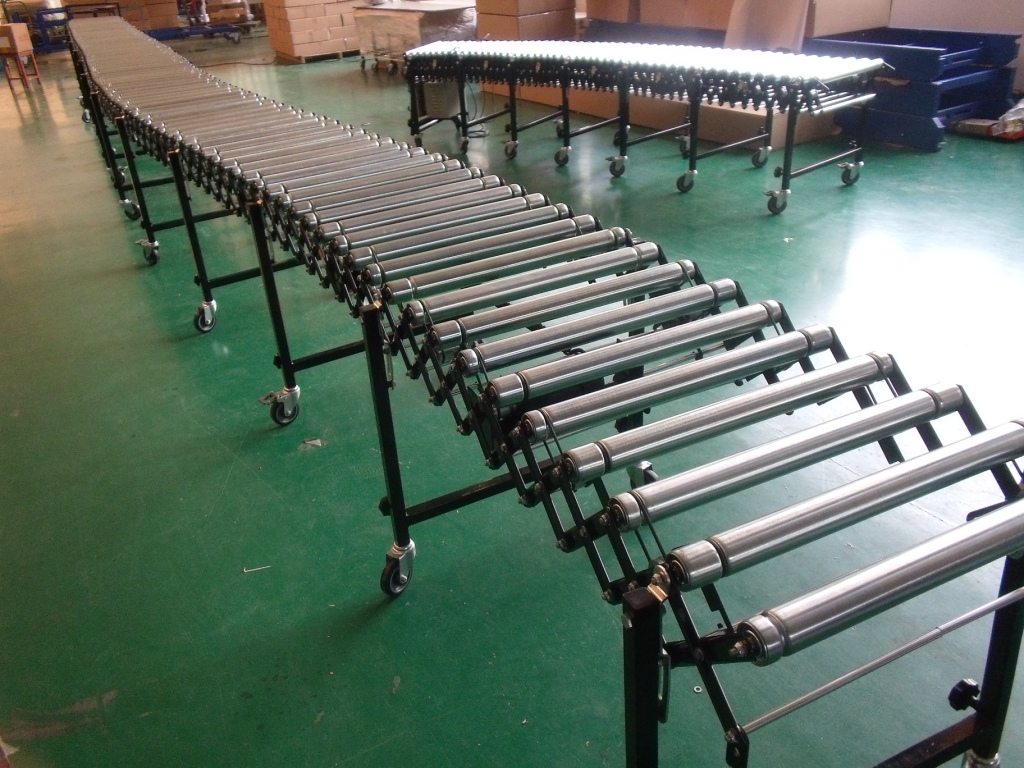

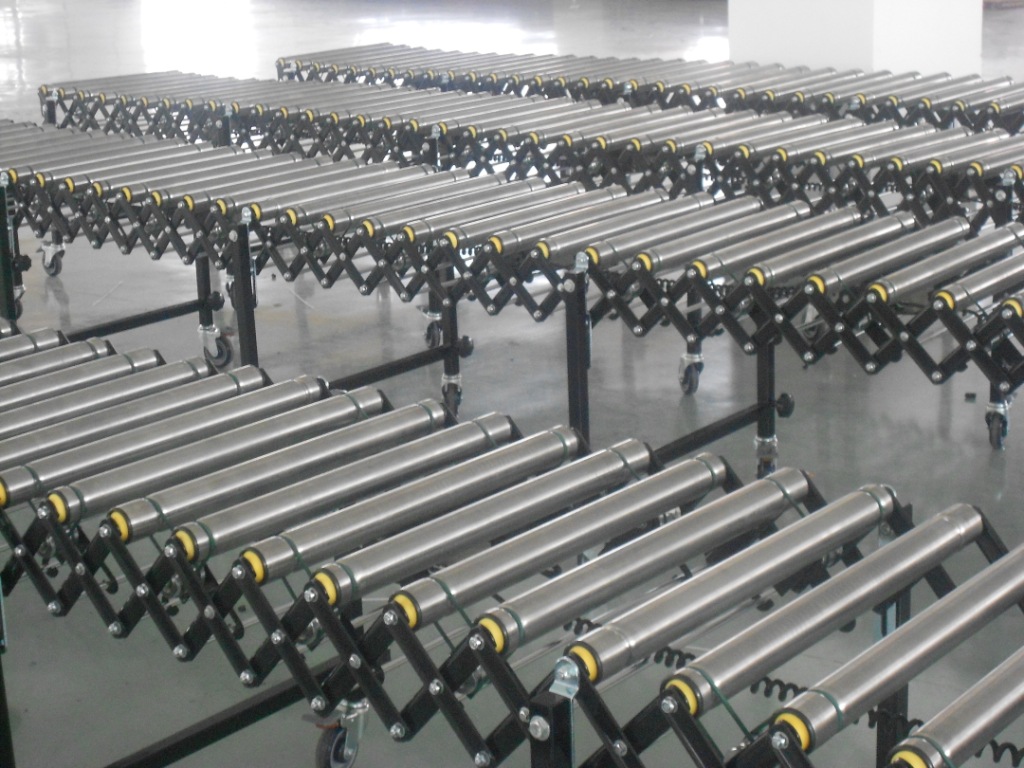

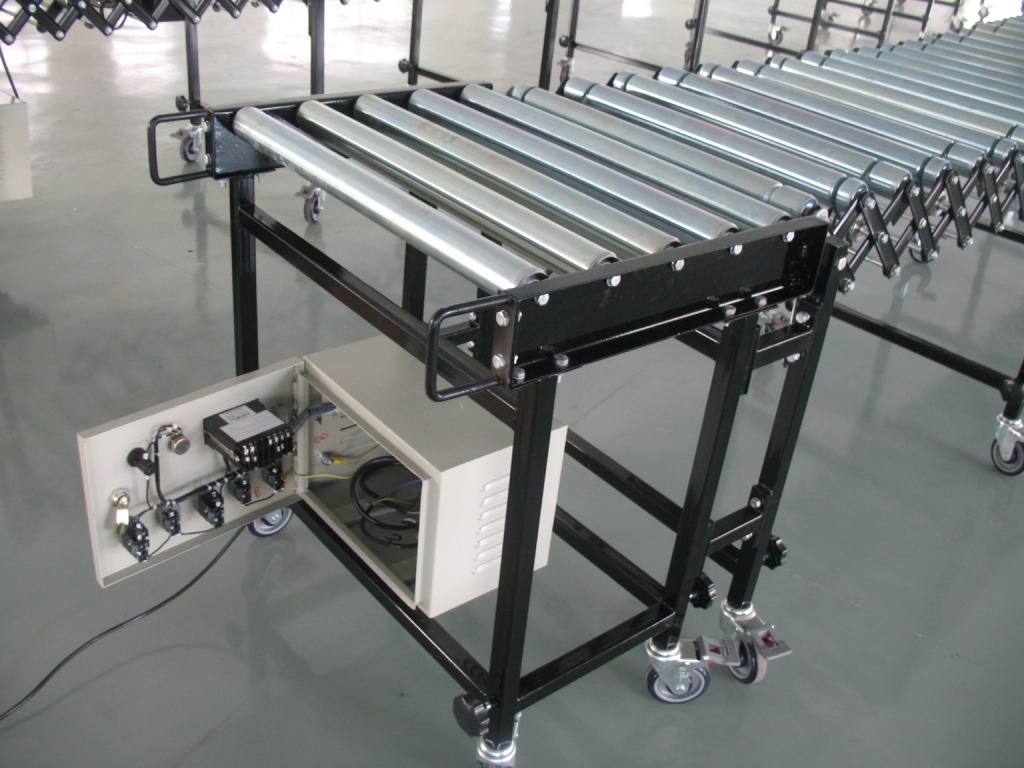

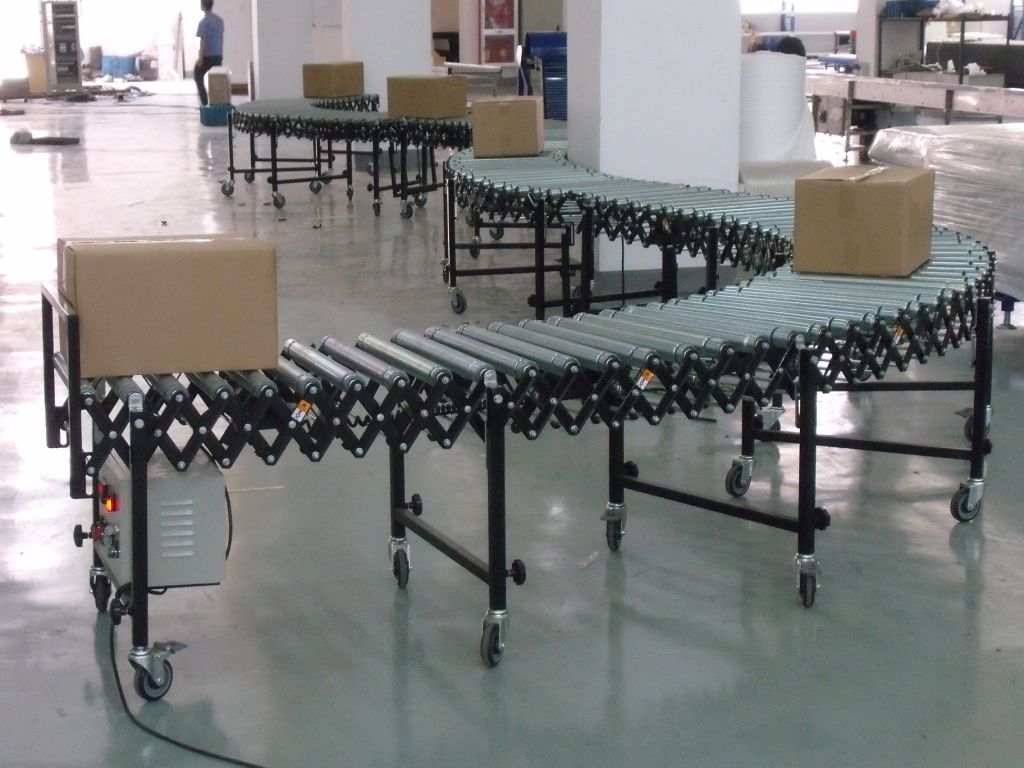

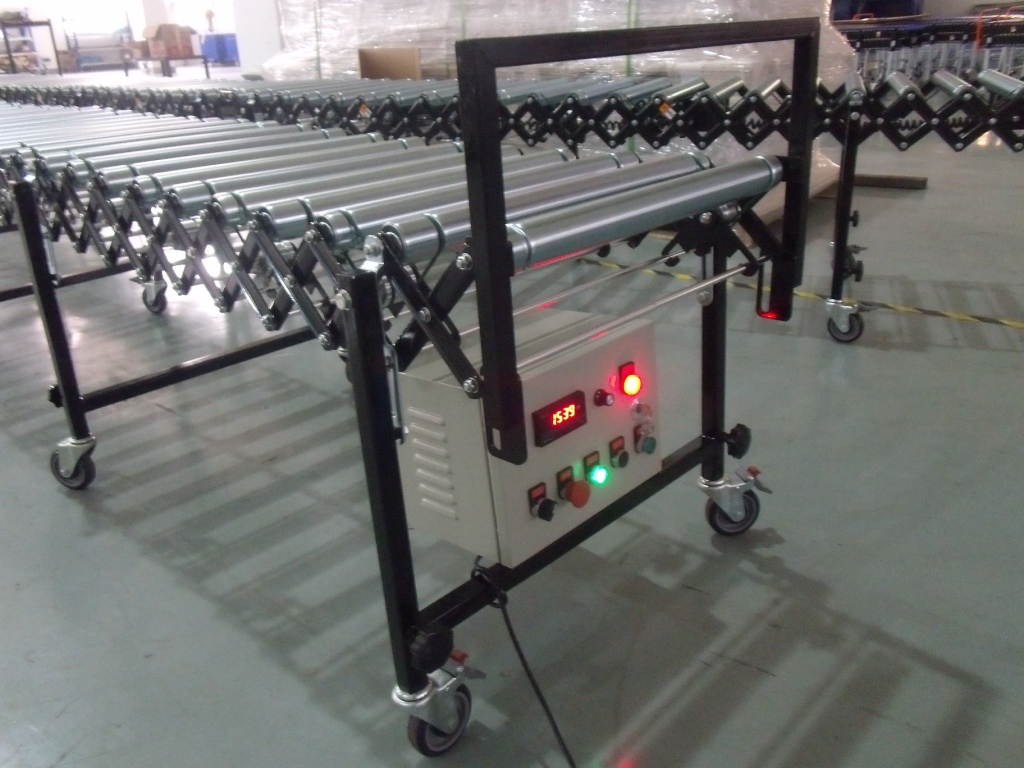

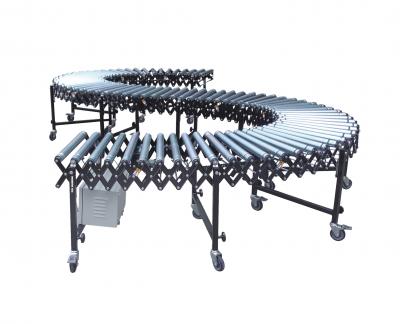

More Pictures for Reference
