Ribbed Belt Driven Roller Conveyor
Model: MRC-B

This conveyor is welcome in massive roller conveyor systems to avoid much noise. It can be cutomized as per specific requirement in specifications, as well as conveyor forms like positive motion, accumulation and sdjustable accumulation. It intends to:
* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:
General packed goods delivery from one place to the other, goods confluence and diversion transition, assembly and production

Features:
Little Noise, Large, continuous and flexible in material transfering, easy to maintain, durable

Relative Products:

Chain Driven Roller Conveyor

Lineshaft Driven Roller Conveyor



More conveyors available, please ASK US if you're looking for something else.

Common Technical Parameters:
Items Options
Conveyor Form Lineal, Levered, T-shaped, L-shaped, Z-shaped, C-shaped,etc
Roller Type Zinc-plated, Chrome-plated, Rubber-coated, SUS201, SUS304, Plastic, etc
Frame Material Painted carbon steel, Powder coated carbon steel, Stainless steel (SUS 201, SUS304, SUS 316), etc
Conveyor Length Optional, often 4 meters as one section with one motor
Conveyor Width 0ptional, 600mm effective as a factory standard
Conveyor Height Optional, 700mm as a factory standard
Roller Diameter Optional, 50mm as a factory standard
Roller Distance Optional, 100mm central as a factory standard
Side Frame Overheight Optional, 50mm as a factory standard
Speed Constant or variable, 10-20m/min as a factory standard
Capacity Optional, 30kg/meter common designed
P.S.: For customized conveyors, please fulfil " INFORMATION COLLECTION " file with an inquiry.

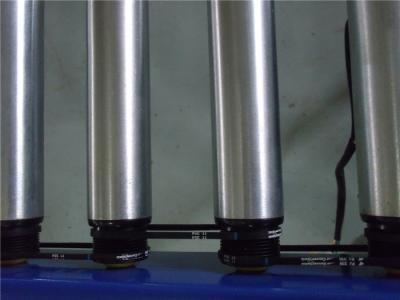

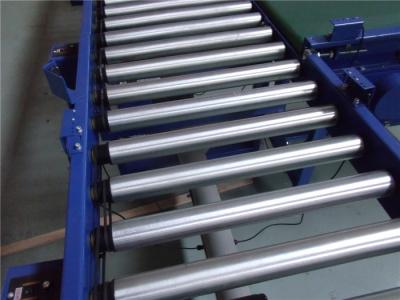

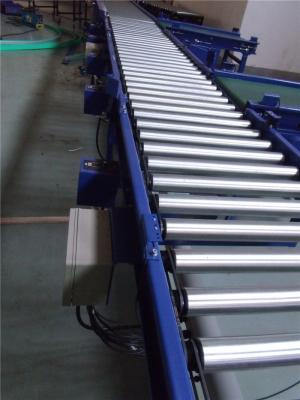

More Pictures for Reference
